Leveraging Azure Service Endpoints for Enhanced Key Vault Security

Leveraging Azure Service Endpoints for Enhanced Key Vault Security

In today’s cloud-centric environment, securing sensitive data and resources is paramount. Microsoft Azure provides a multitude of services designed to enhance security, among which Azure Key Vault and service endpoints play critical roles. This post delves into the intricacies of Azure service endpoints for Key Vaults, their operational dynamics, and a detailed guide on setting them up to secure your cryptographic keys and secrets.

Understanding Azure Service Endpoints for Key Vaults

Azure Key Vault is a cloud service that provides a secure repository for managing secrets, keys, and certificates. However, securing access to the Key Vault is equally important. This is where Azure service endpoints come into play. Azure service endpoints provide a secure link between your virtual network and Azure services, without exposure over the public internet. For Key Vaults, this means you can ensure that only applications running within your controlled network can access your secrets and keys.

Purpose of Azure Service Endpoints for Key Vaults:

  • Enhanced Security: Restrict access to the Key Vault from specific virtual networks, minimizing the risk of unauthorized access.
  • Optimized Performance: Service endpoints provide optimized routing, ensuring low-latency access within Azure’s backbone network.
  • Monitoring and Logging: Integrate with Azure Monitor and Azure Key Vault logs for auditing and compliance requirements.

Step-by-Step Guide to Setting Up Azure Service Endpoints for Key Vaults

Prerequisites:

  • An active Azure subscription.
  • An Azure Virtual Network (VNet).
  • An Azure Key Vault.

Step 1: Enable Service Endpoints on Your Virtual Network

  1. Navigate to the Azure portal and select your Virtual Network (VNet).
  2. In the settings pane, select ‘Service endpoints’.

A screenshot of a computer Description automatically generated

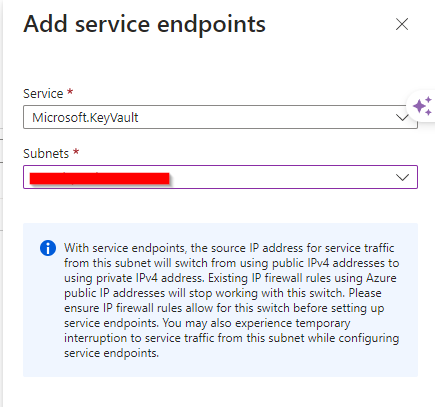

Click ‘Add’, and from the dropdown, select ‘Microsoft.KeyVault’.

A screenshot of a computer Description automatically generated

Choose the subnet within your VNet where you want to enable the service endpoint and save your changes.

A screenshot of a computer Description automatically generated

After adding the service endpoint, you will be able to see the new endpoint added.

A screenshot of a computer Description automatically generated

Step 2: Configure Your Key Vault to Accept Connections from Your VNet

  1. Go to your Azure Key Vault in the Azure portal.
  2. Under ‘Settings’, select ‘Networking’.

A screenshot of a computer Description automatically generated

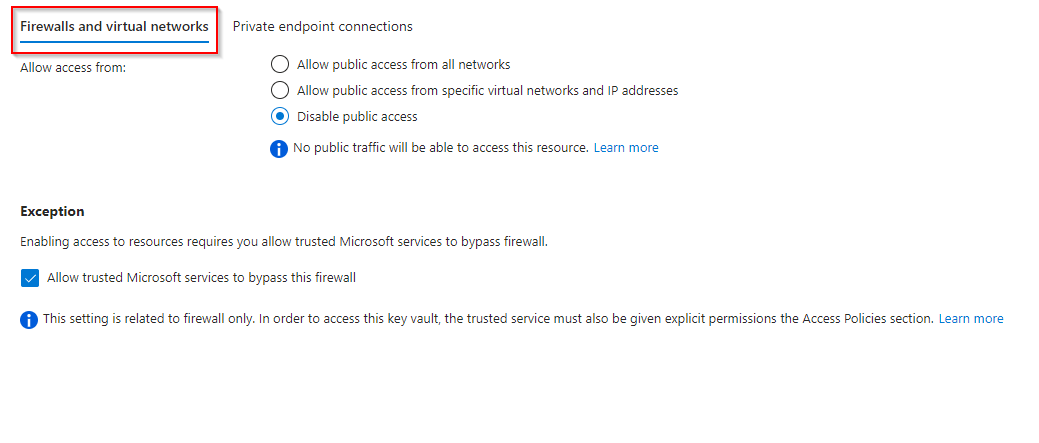

In the ‘Networking’ tab, choose the ‘Firewalls and virtual networks’ option.

A screenshot of a computer Description automatically generated

Select ‘Allow public access from specific virtual networks and IP addresses’.

A screenshot of a computer Description automatically generated

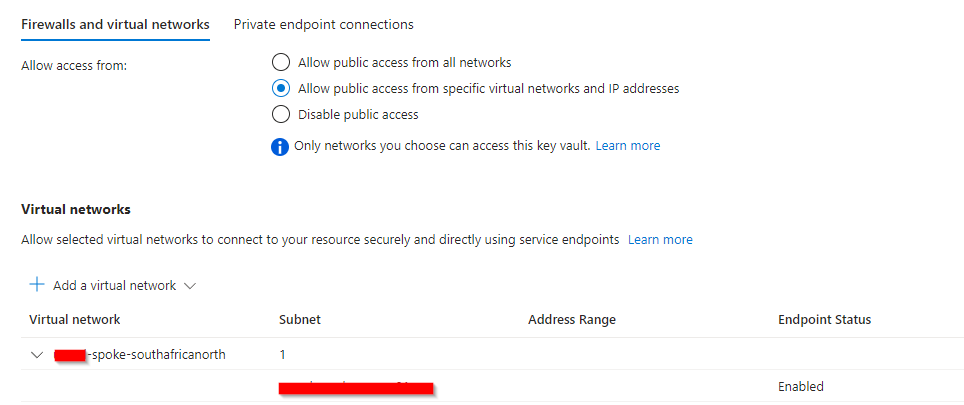

Click ‘Add existing virtual network’, select your VNet and the subnet you enabled the service endpoint on.

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

Click ‘Apply’ Save your changes.

A blue and black box with black text Description automatically generated

Step 3: Validate the Setup

  1. Attempt to access the Key Vault from a VM or service within the subnet. The access should be successful.
  2. Try accessing the Key Vault from outside the VNet. The access should be denied, indicating the service endpoint is working as expected.

Use Cases for Azure Service Endpoints with Key Vaults

  • Secure Application Secrets: Applications running within your Azure VNet can securely retrieve secrets from the Key Vault without exposing the secrets over the public internet.
  • Dynamic Configuration: Store application configuration settings in Key Vault, allowing applications to dynamically retrieve them, ensuring sensitive information is not hard-coded.
  • Certificate Management: Centralize the management of SSL/TLS certificates for your Azure services, ensuring secure and private access.

Conclusion

Azure service endpoints for Key Vaults offer a robust mechanism to secure your cryptographic keys and secrets by ensuring they are only accessible from within your controlled network environment. By following the steps outlined above, you can enhance the security posture of your applications and services running in Azure. This setup not only bolsters security but also aligns with best practices for cloud architecture, ensuring your resources are protected at all times.

Remember, securing your cloud resources is an ongoing process that involves regular reviews and updates to your configurations to adapt to evolving security threats. Azure provides a comprehensive set of tools and services to aid in this endeavor, making it crucial to leverage these to their fullest potential.
